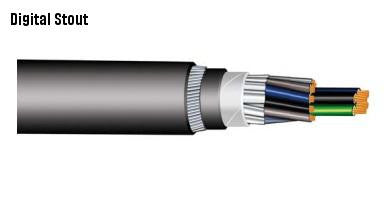

MESC 12Px1.5SQMM Cu/XLPE/IS/OS/PVC/SWA/PVC Black
Brand: MESC
PRODUCT SPECIFICATIONS
Cable Construction
Brand Name MESC Cables
Size 12P x 1.5 SQMM
Conductor Stranded Annealed Copper to Class 2 (IEC60228)
Insulation Extruded XLPE
Colour Code Multi Pair Black & White
Pair Construction Two insulated conductors are uniformly twisted to form a pair with 10-14 twists per meter
Individual Screen Aluminium backed Mylar Tape is applied over each pair. All pairs are electrically isolated.
Cabling Assembly is wrapped with Polyester Tape
Collective Screen Aluminium backed Mylar Tape
Inner Sheathing Flame Retardant PVC
Armour Single layer SWA to BS EN 10257
Over sheathFlame Retardant PVC
